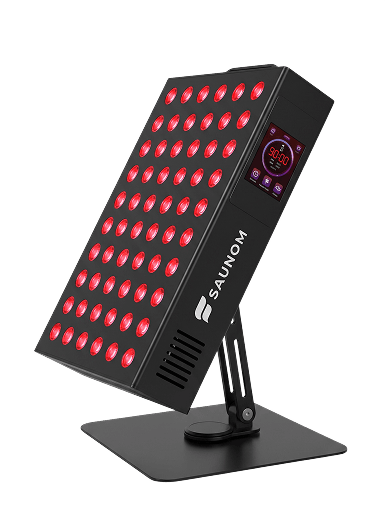

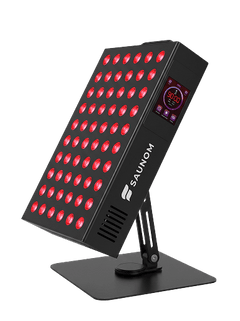

Saunom EW300 Pro Red Light Therapy Panel
/
Quad-Chip
60 Quad-Chip 5W LEDs
60 Quad-Chip 5W LEDs
Irradiance
Output Published Below at 6 Distances
Output Published Below at 6 Distances
Wavelengths
4 Wavelengths in Every LED, 630 · 660 · 810 · 850nm
4 Wavelengths in Every LED, 630 · 660 · 810
4 Wavelengths in Every LED, 630 · 660 · 810 · 850nm
Free US shipping
For orders over $49.99
For orders over $49.99
Fast Delivery
2-6 working days (US)
2-6 working days (US)
Disclaimer
For general wellness and lifestyle use. Not a medical device. Not intended to diagnose, treat, cure, or prevent any disease, and not evaluated by the FDA.
For general wellness and lifestyle use. Not a medical device. Not intended to diagnose, treat, cure, or prevent any disease, and not evaluated by the FDA.
Available in stock
Specifications
Specifications
Red light, 630 & 660nm. The visible red glow.
Near-infrared, 810 & 850nm. Invisible light, a longer wavelength than the red.
60 quad-chip LEDs. All four wavelengths in every LED, so the spectrum is even across the panel with no single-wavelength zones.
Output up to 220 mW/cm². Published at six distances (220 at the surface down to 70.59 at 18 inches), not one peak number.
Timer, 1 to 100 min. Presets at 15, 30, 60, 90, or set your own.
Brightness, 1% to 100%. Red and near-infrared adjust separately.
Pulse, 0 to 100Hz. Run steady or pulsed.
Touchscreen + remote. Re-pairable remote if it ever loses sync.

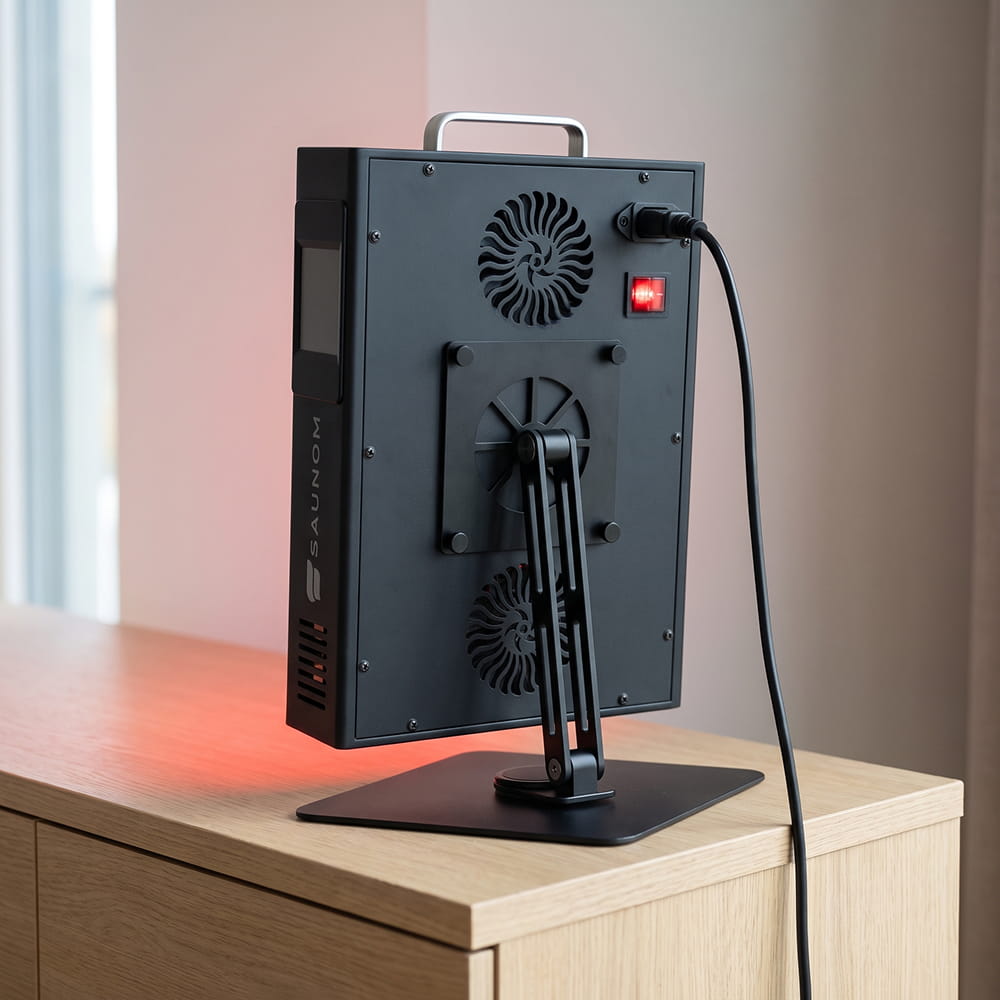

Build. All-aluminum body, dual cooling fans, 7.4 lb, weighted 360° stand included.

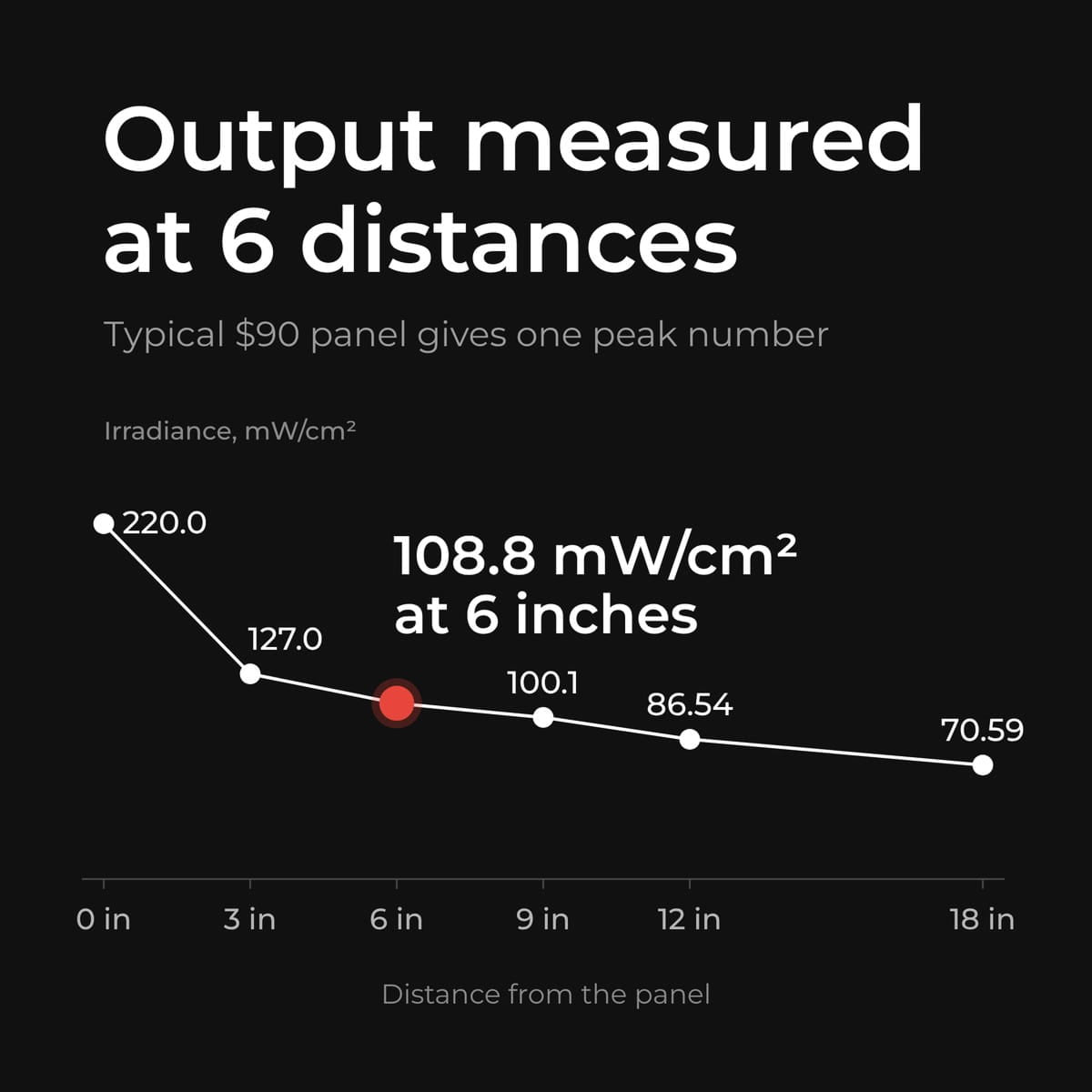

Output Published at Six Distances
Four Wavelengths in Every LED
110W Real Draw, Not Theoretical Wattage

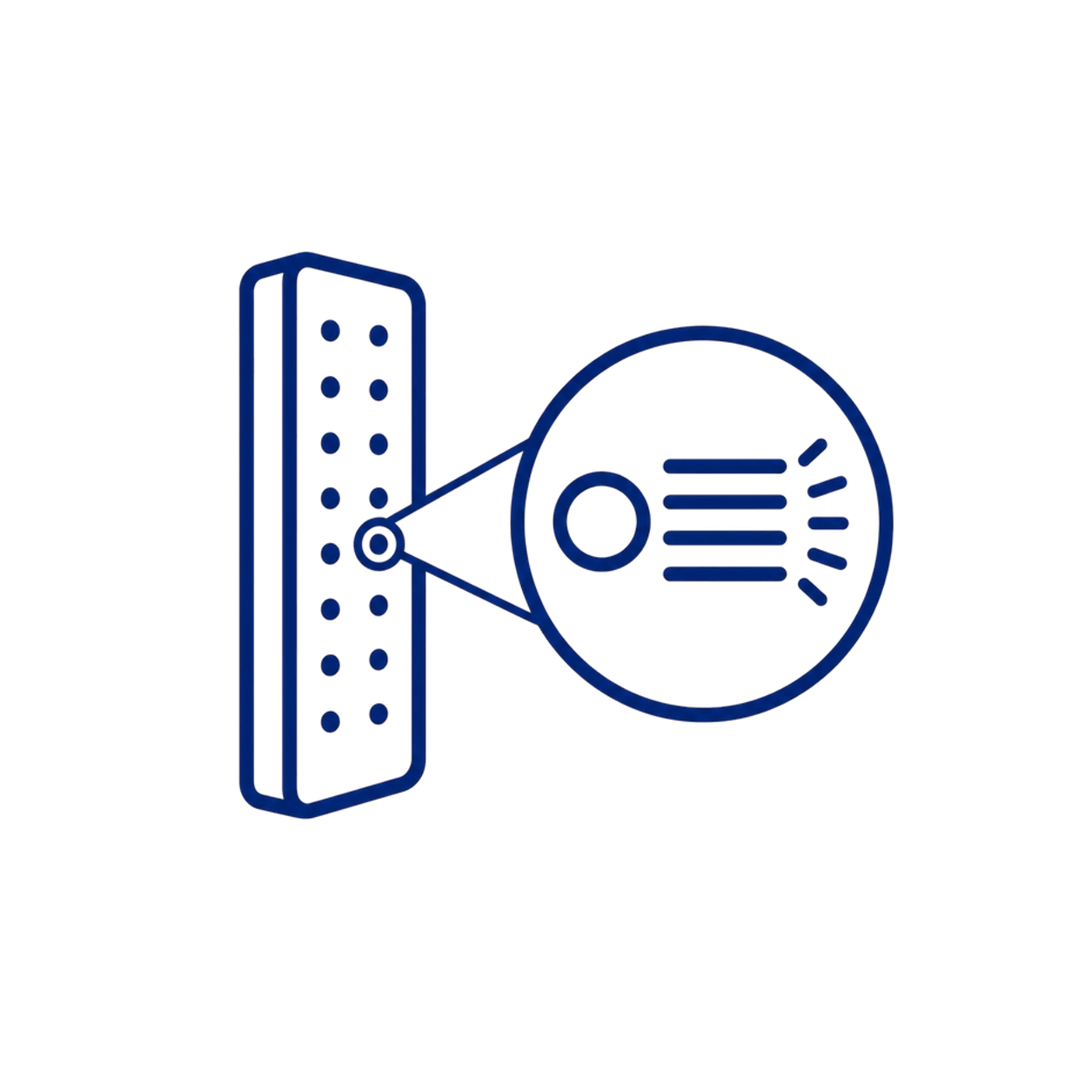

Quad-Core Leds & Measured Output

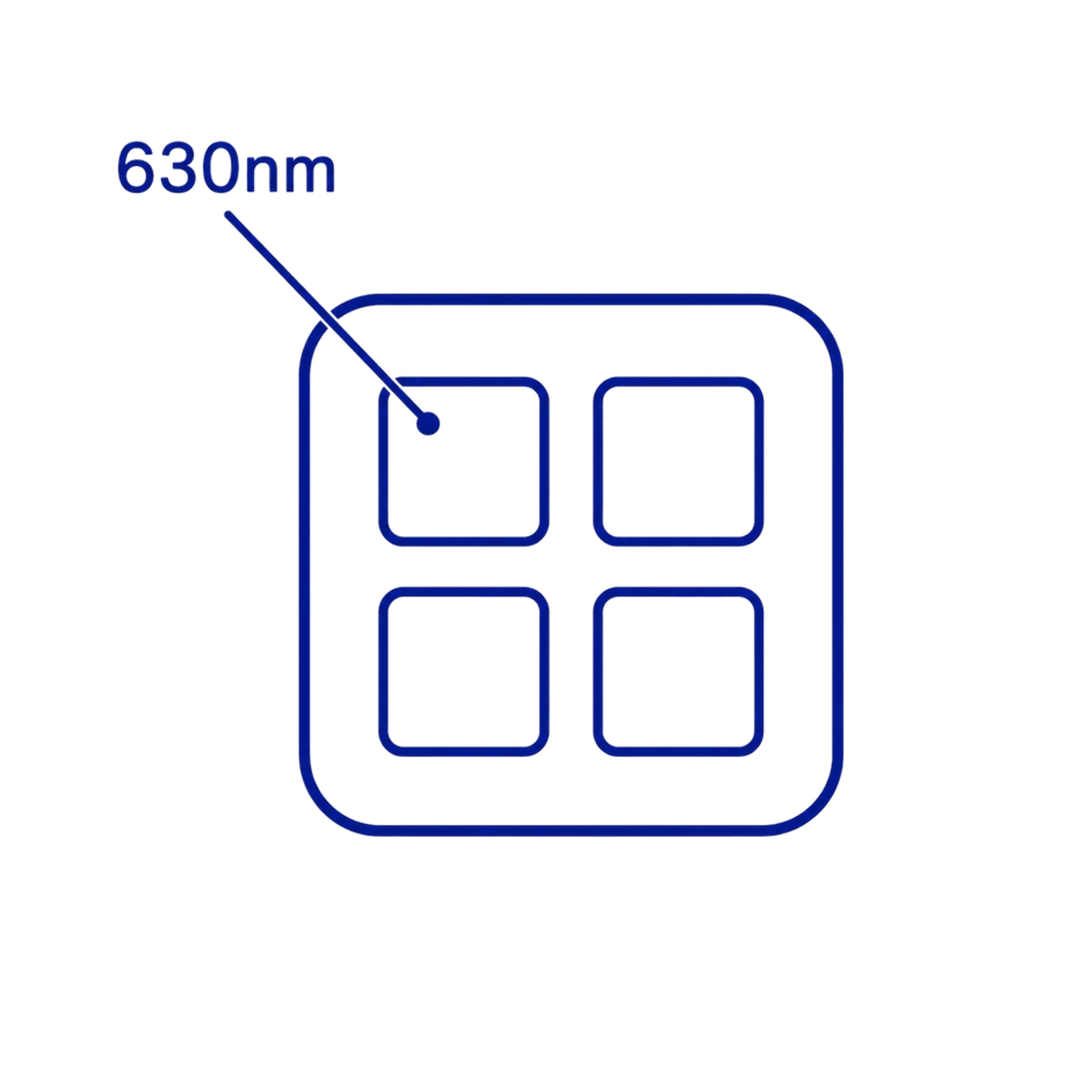

630nm Red
Visible red light.

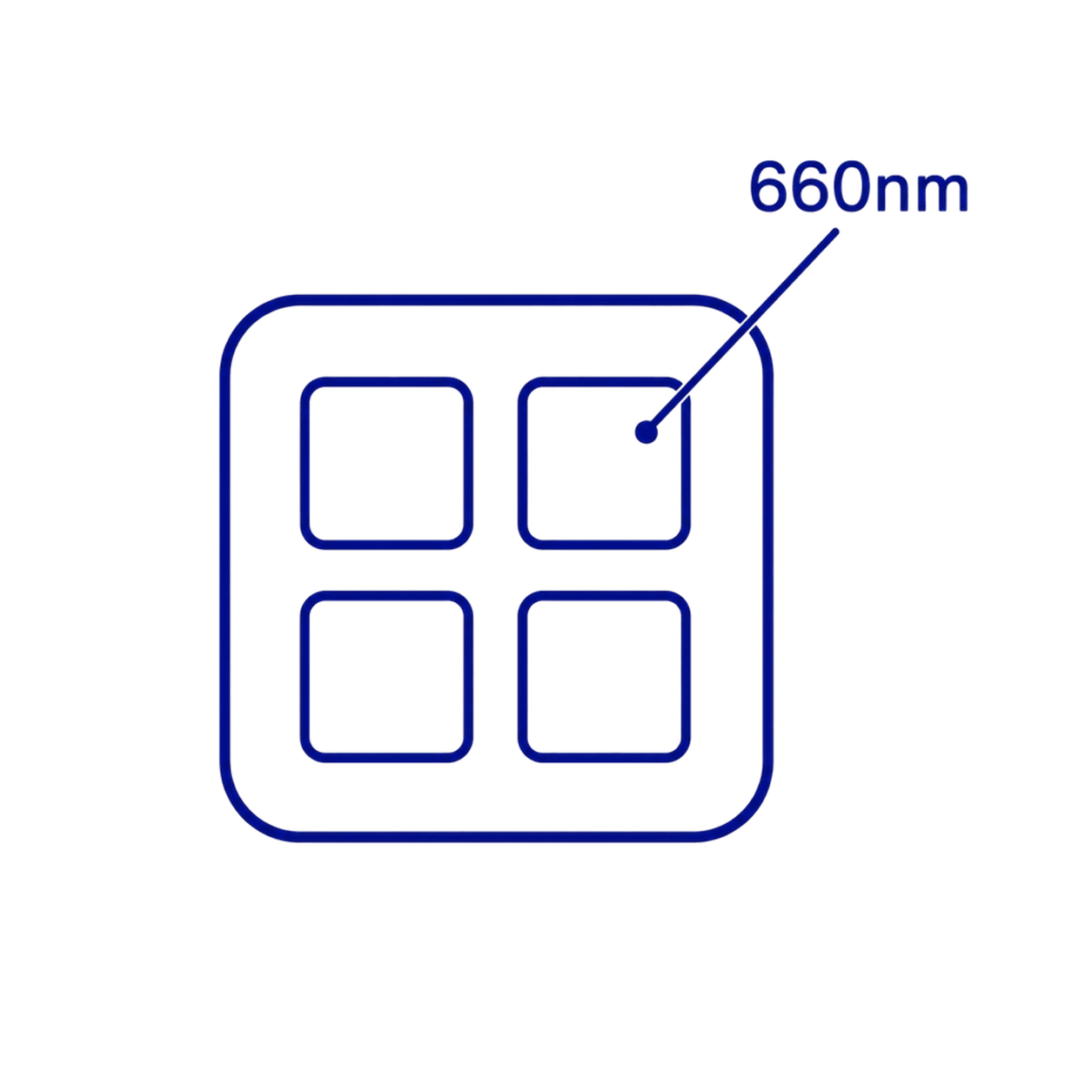

660nm Red
Visible red light.

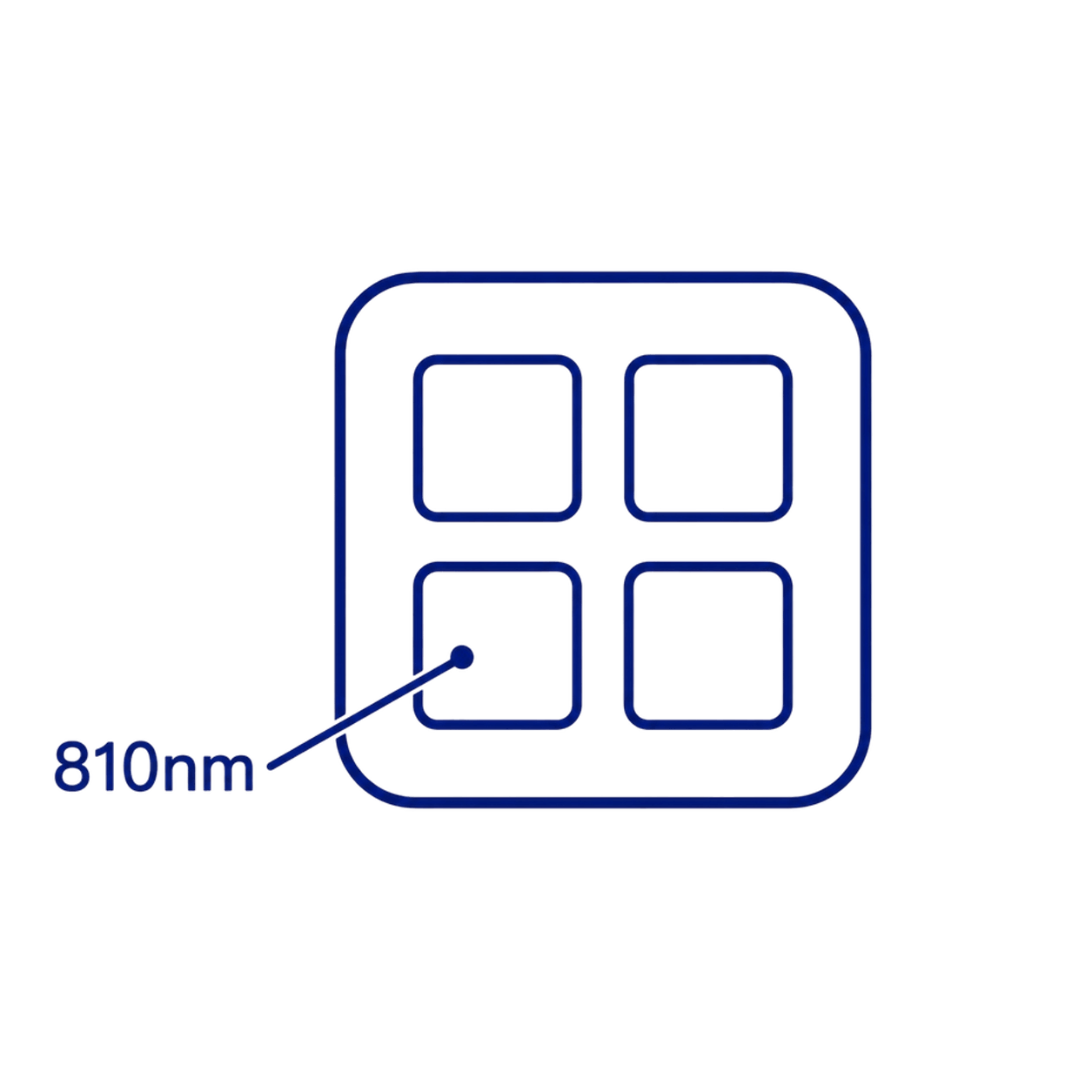

810nm Near-infrared
Invisible to the eye.

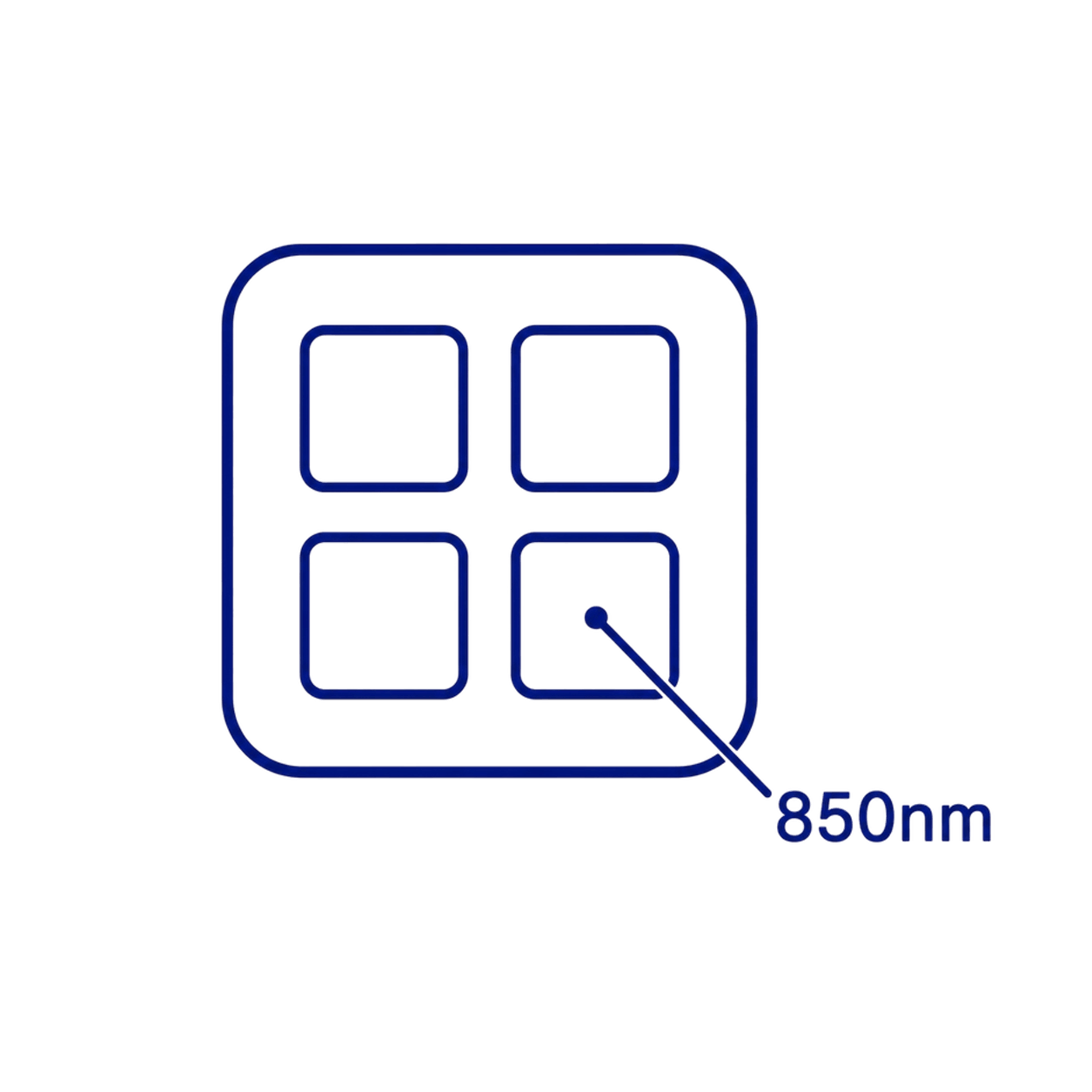

850nm Near-infrared
Invisible to the eye.

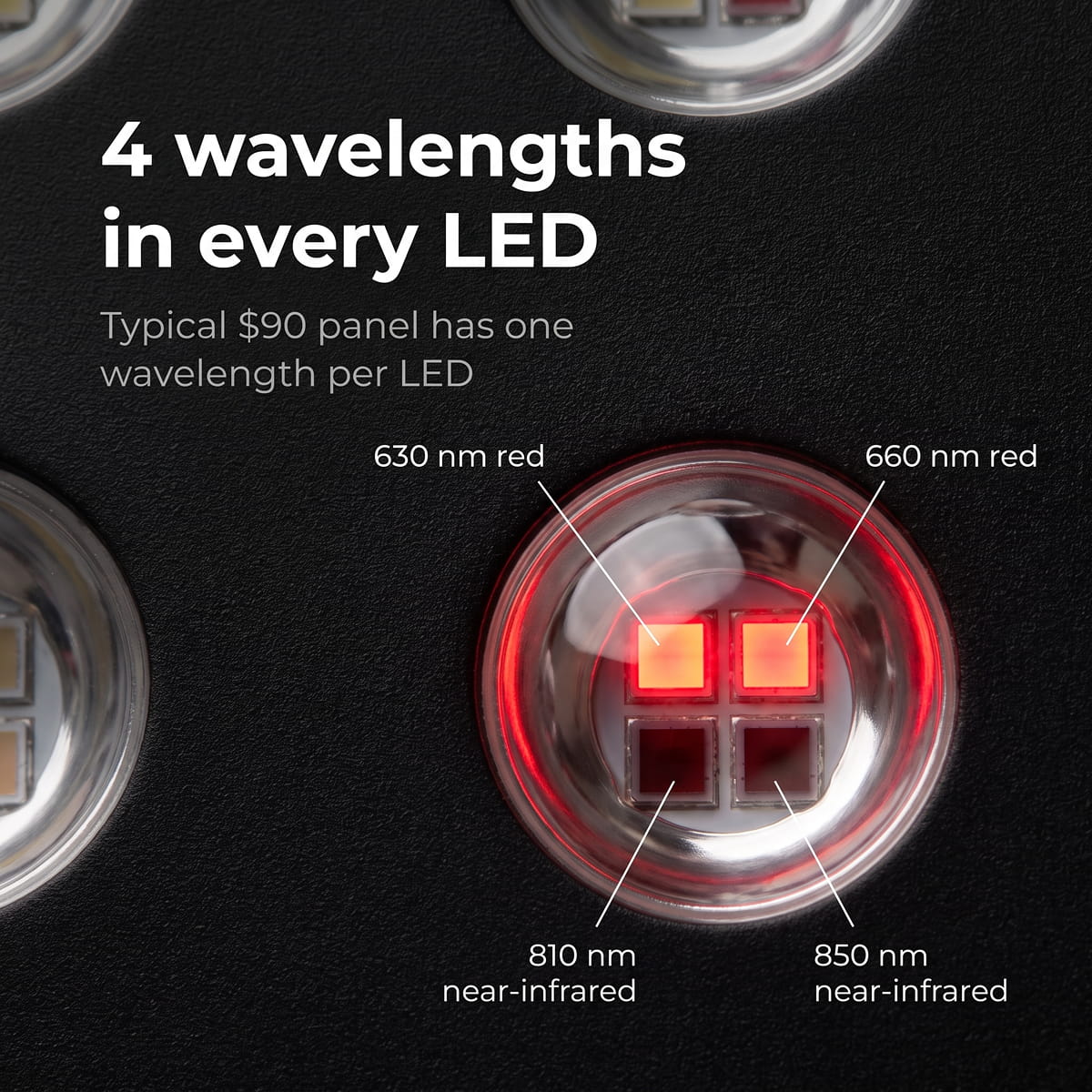

Every one of the 60 LEDs is a quad-chip emitting all four wavelengths at the same time. You get the same spectrum across the entire panel, not a panel where some LEDs are only red and others only infrared.

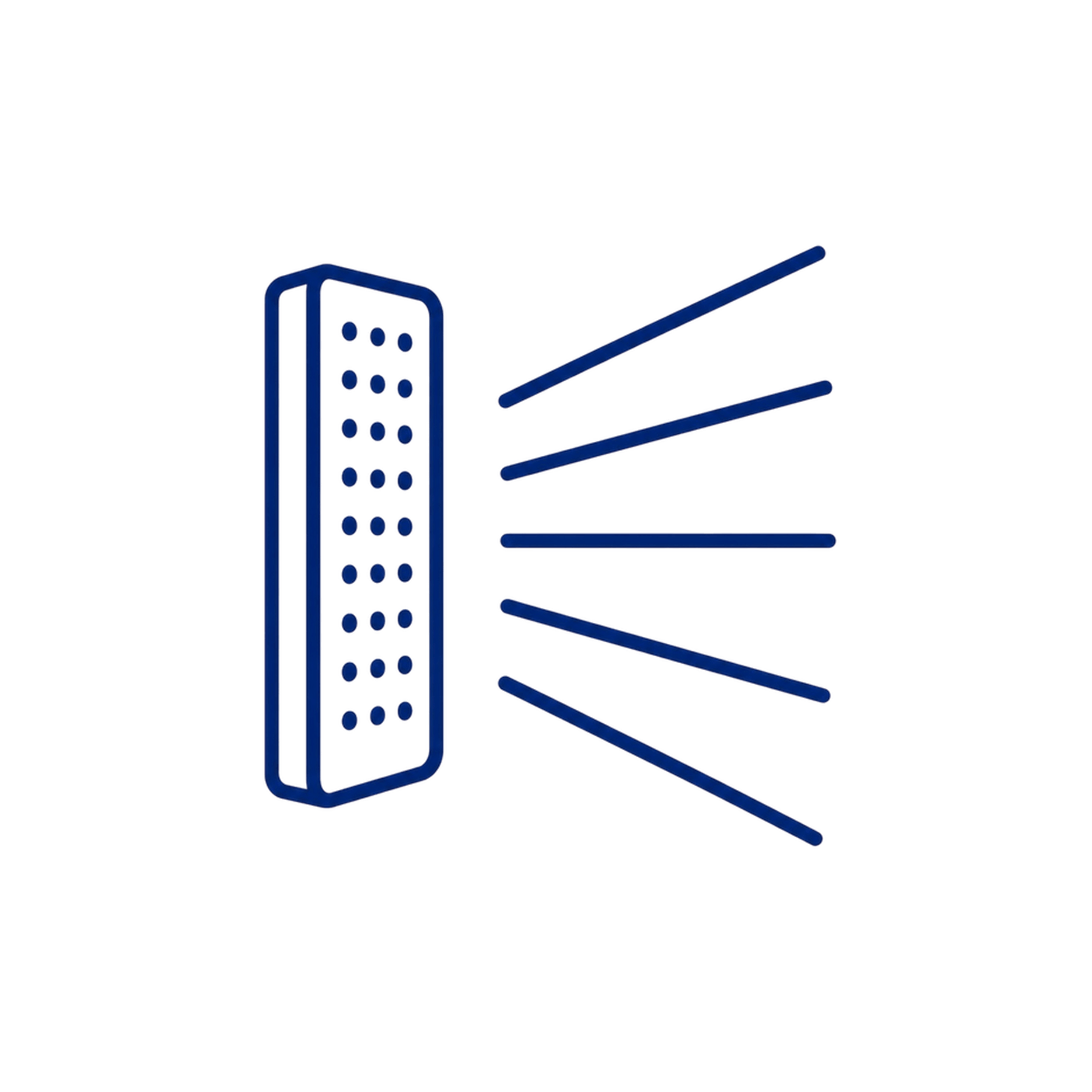

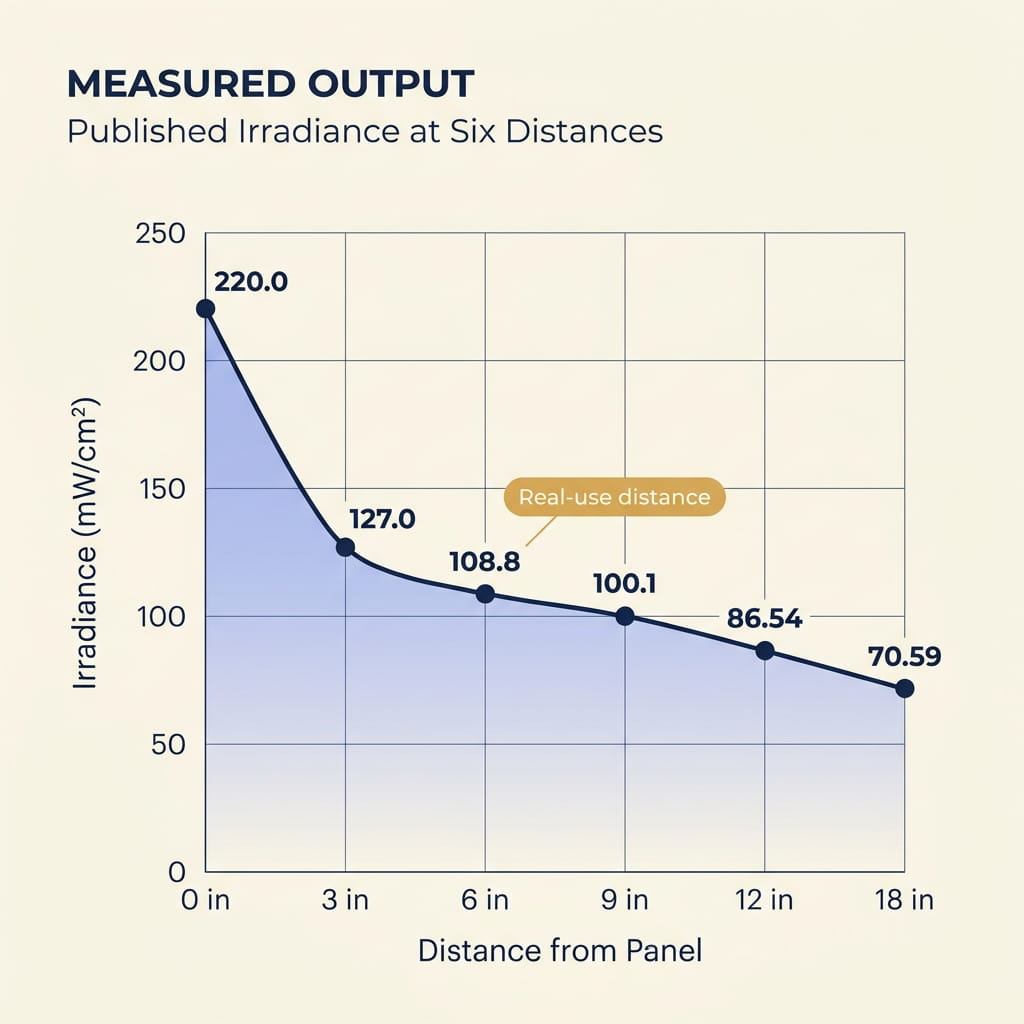

Measured Output, Published in Full
Most panels advertise one irradiance number, measured with the sensor pressed against the surface.
That's the highest figure a panel can print, and it isn't the distance you'll actually use it at.
We publish output at six distances so you can see what reaches your body where you'll sit.

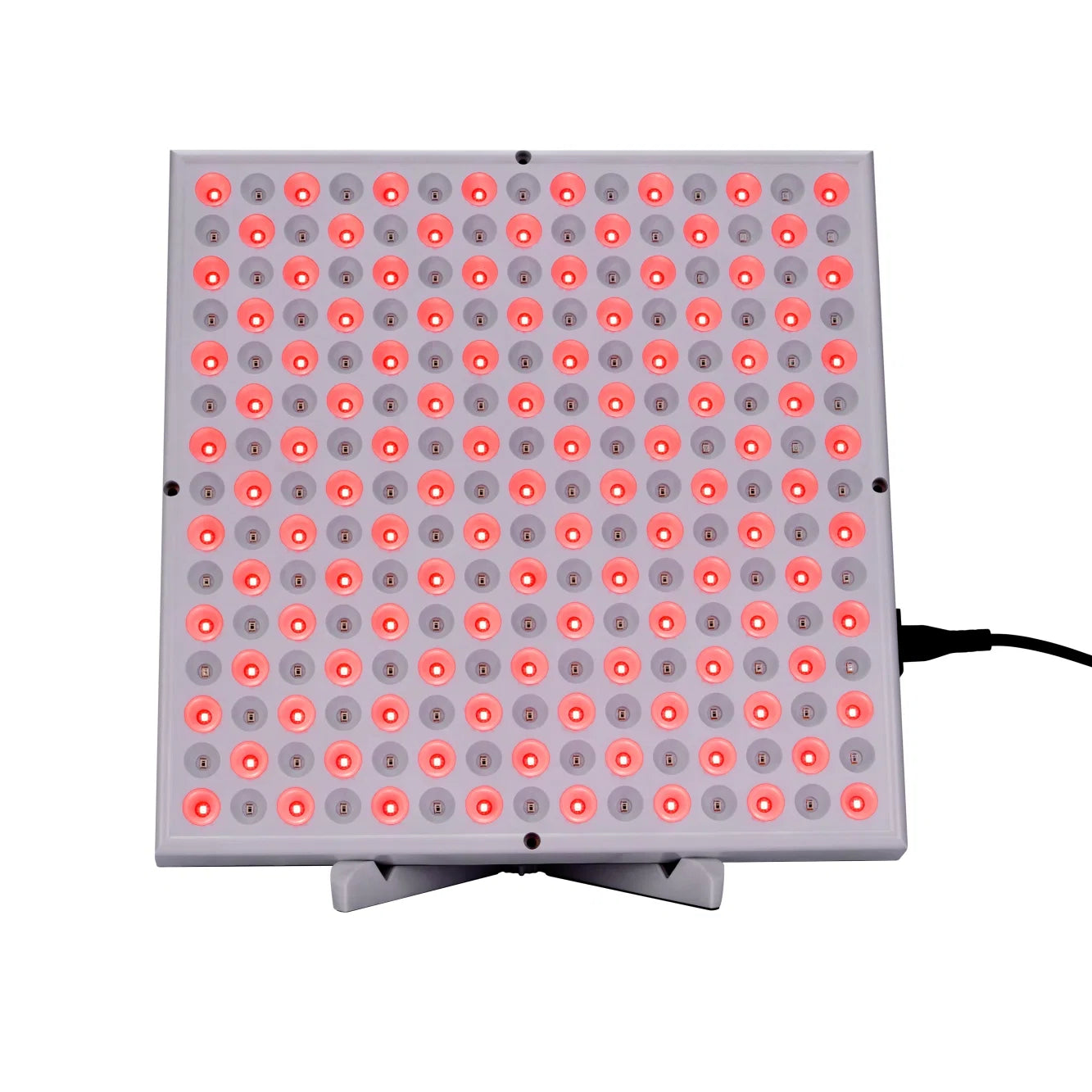

Why Not the $90 Panel?
-
Wattage claim
-
Wavelengths
-
Irradiance data
-
Controls
-
Remote
-
Body & cooling
-
Stand
J. A. Terwilliger

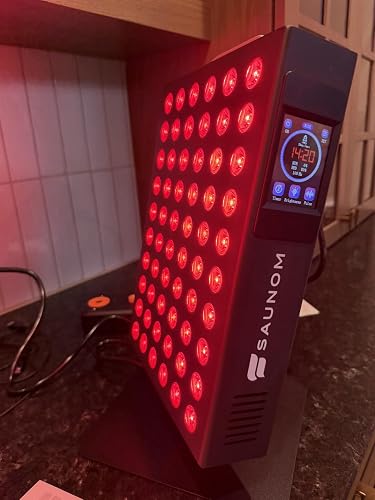

Very impressed with the size, weight and quality… everything feels heavyweight and sturdy. There's a tiny touchscreen on the side, making it very easy to navigate between the preset modes… The machine rotates up and down and sideways This is a more serious model than the cheaper plastic ones, constructed of metal.
C. R.

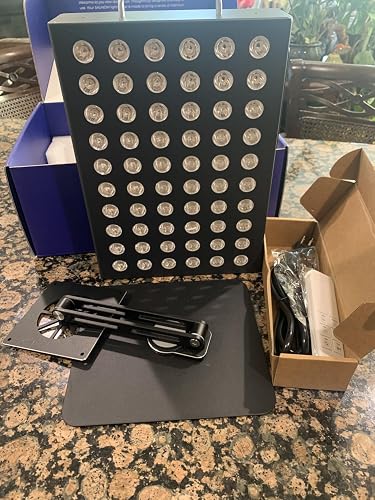

This unit is very solid and the most heavy-duty panel I have ever seen for red light therapy. It is so well packaged, and you do have to put the panel together with the stand but it is not difficult at all. The stand allows for tilting and rotating the panel in whatever direction you need… It makes a great gift, as well.
Metolius M.
I previously purchased a red light to attach inside the sauna but mounting it proved really difficult… This tabletop panel is so much better, and I'm finding it super convenient and easy to work into my daily schedule. The casing and stand are all a nice heavier metal and the unit is heavier than I expected and very stable.

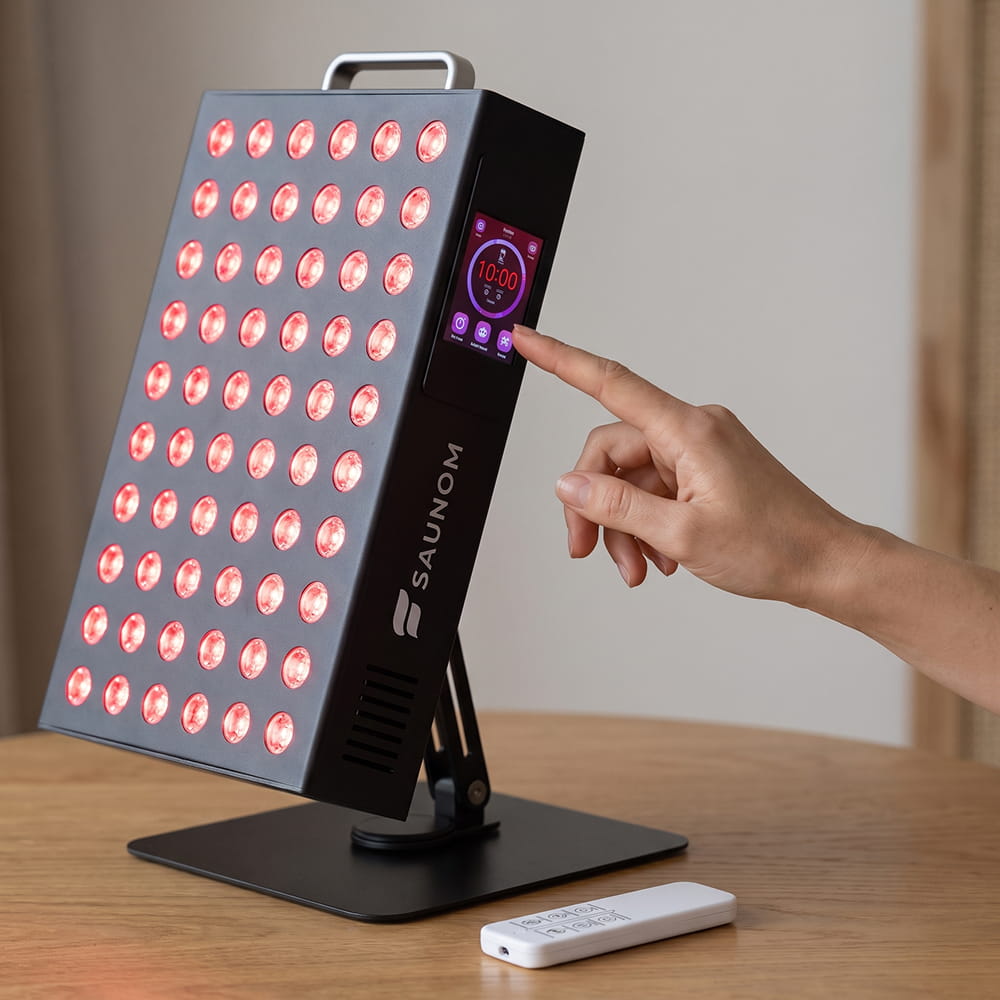

Full Control Over The Panel
8 Presets + Custom Save.
Dial in time, brightness, and pulse, then hold a preset button to save it.
Timer, 1 to 100 min
One-touch presets at 15, 30, 60, and 90 minutes, or set any length on the slider.

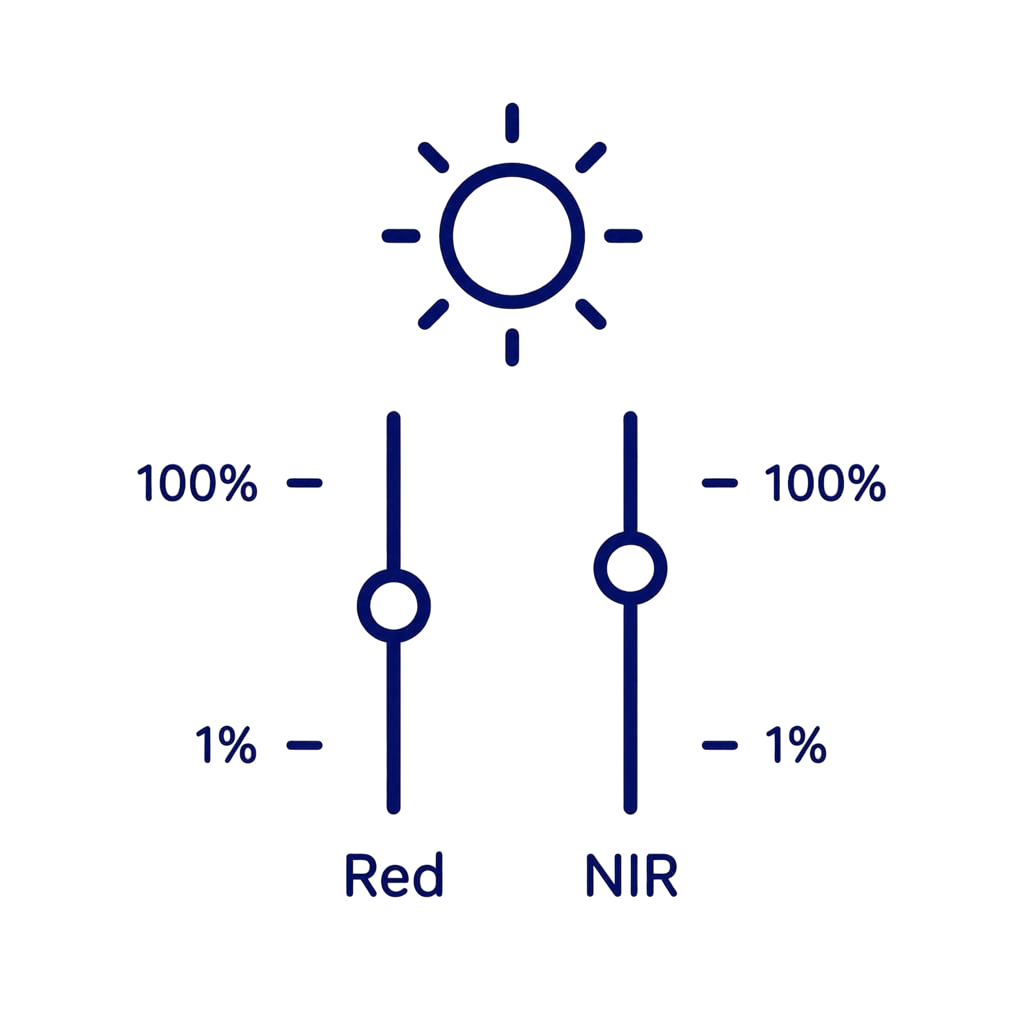

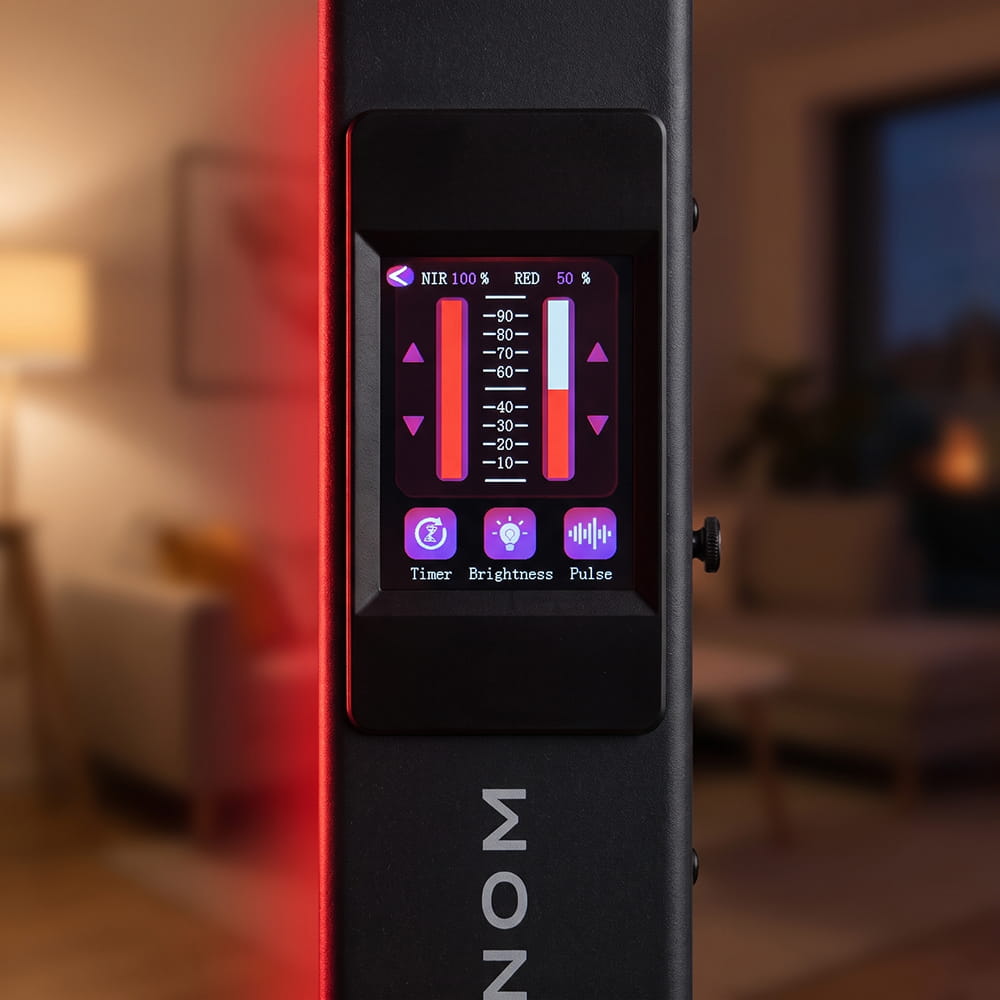

Brightness, 1% to 100%
Red and near-infrared adjust separately, so you set the mix you want.

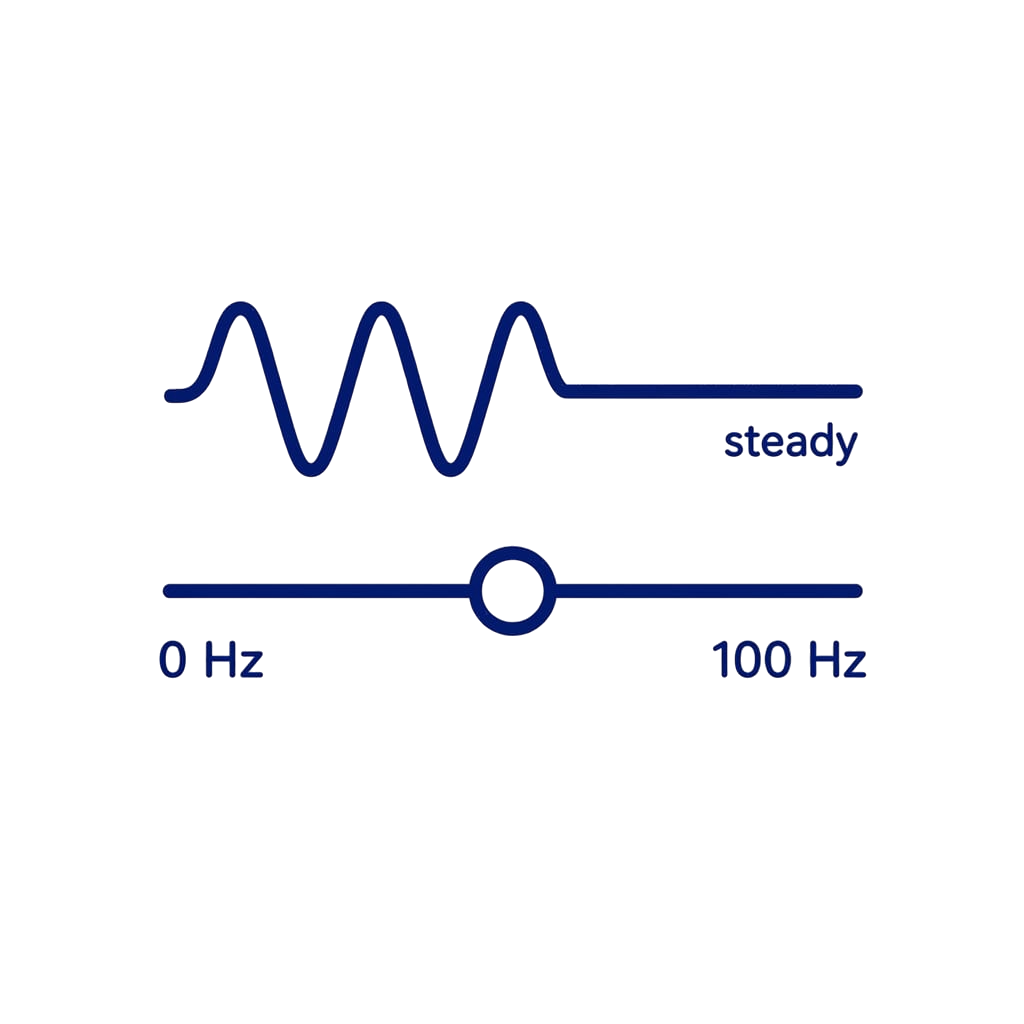

Pulse, 0 to 100Hz
Choose a pulse frequency and adjust it to your own preference.

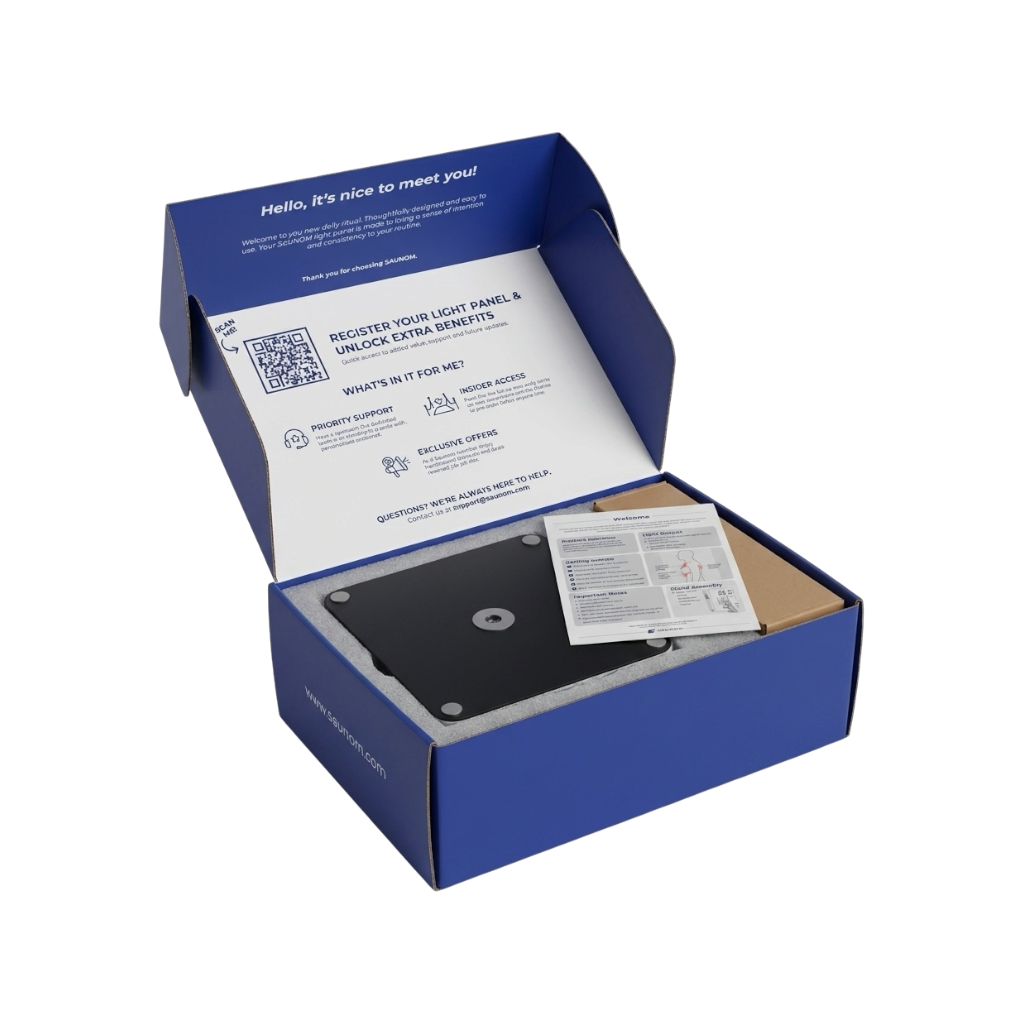

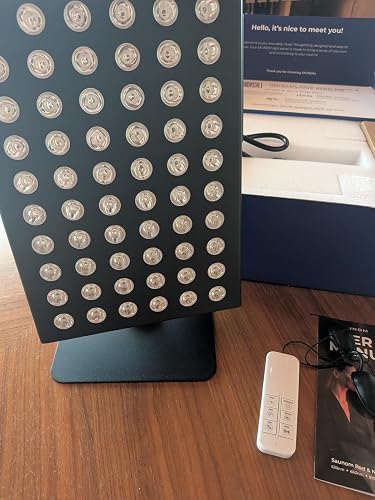

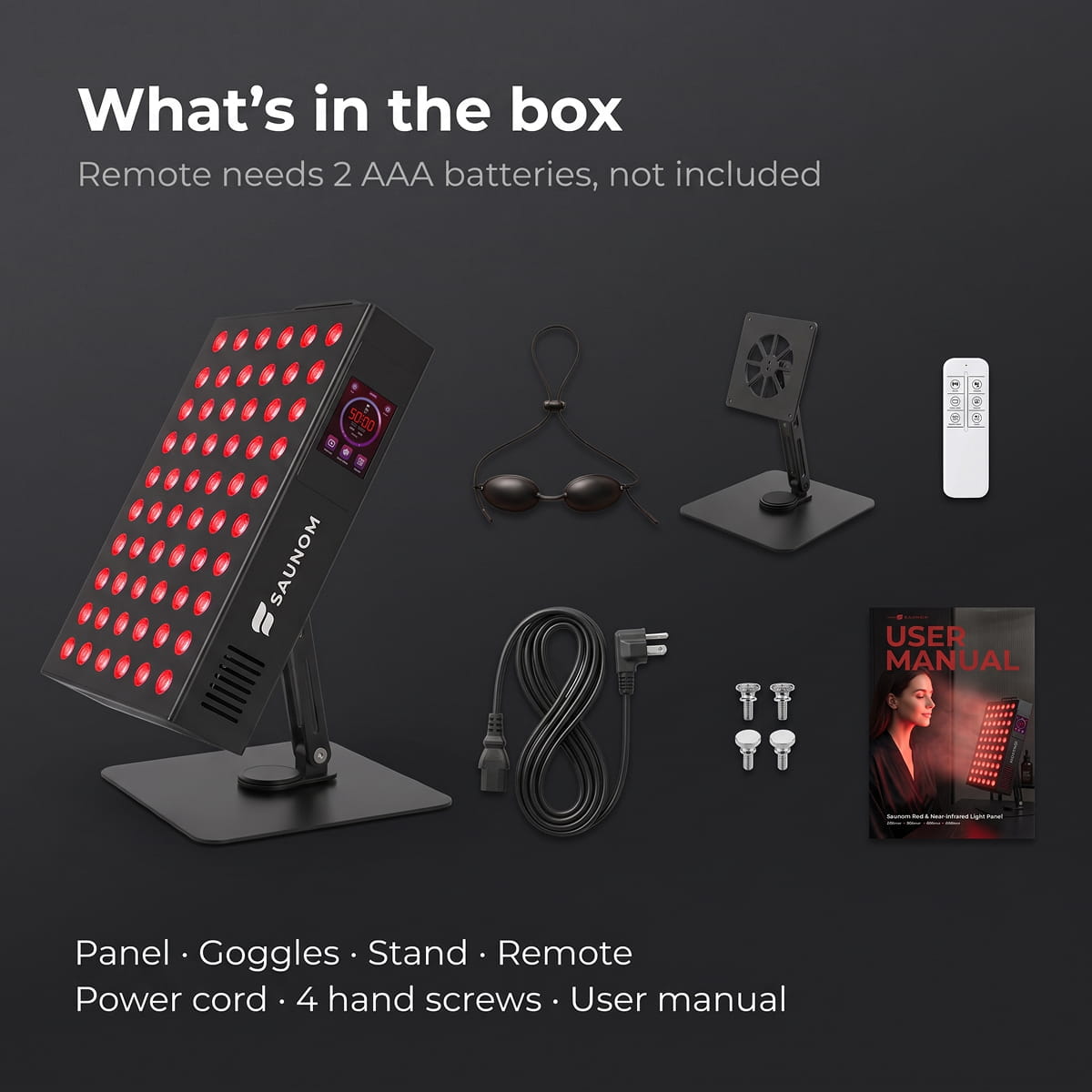

What's in the Box
EW300 Pro Panel
60 quad-chip 5W LEDs.
60 quad-chip 5W LEDs.

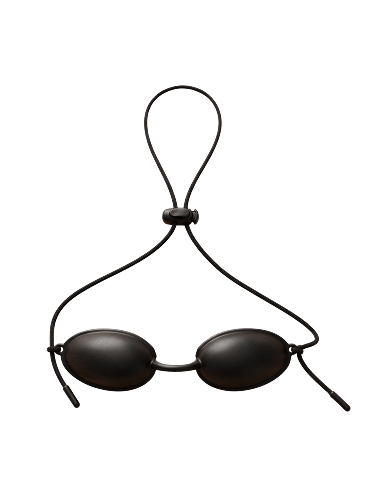

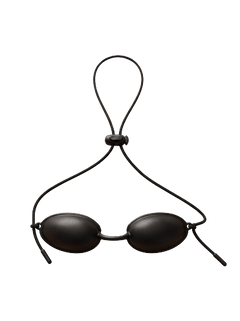

Protective Eyewear
For face-forward sessions.
For face-forward sessions.

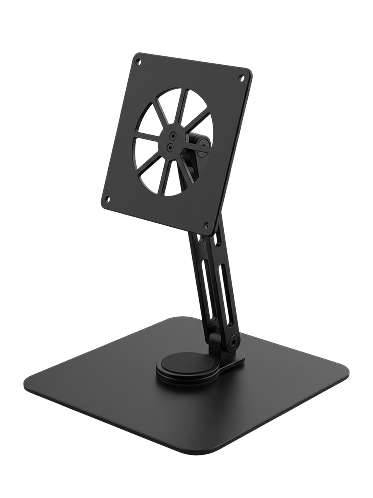

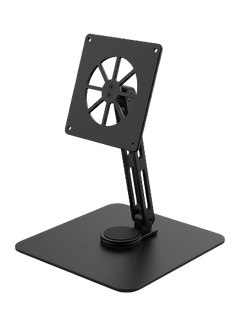

Weighted 360° Stand
Tilts and rotates.
Tilts and rotates.

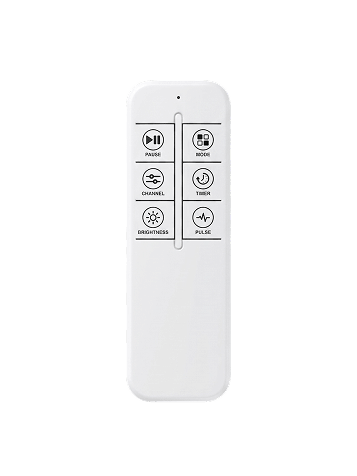

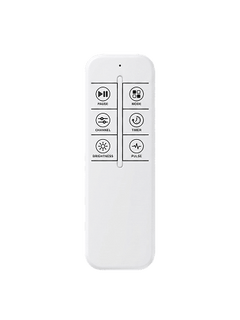

Remote Control
Re-pairable. 2 AAA (not included).
Re-pairable. 2 AAA (not included).

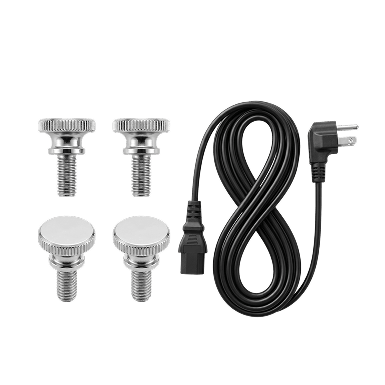

Power Cord + 4 Screws
No tools to assemble.
No tools to assemble.
User Manual
Setup and presets.
Setup and presets.

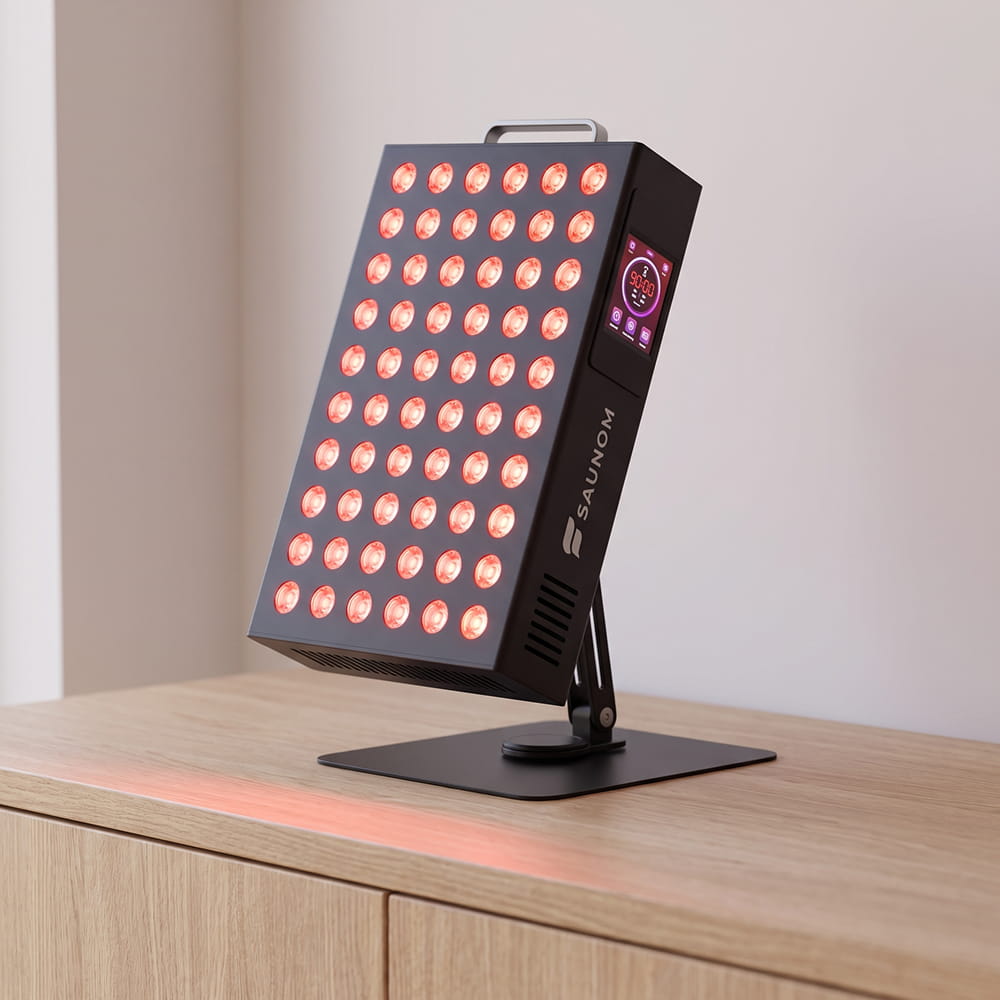

Sized for a Desk, Not a Wall Mount
12.6 × 9.1 × 2.5 inches, 7.4 lb. It stands on a desk, counter, or nightstand and tilts on the weighted base.
The built-in handle means you move it room to room instead of buying one per room.
Full Specifications
Light & Output
Light & Output
- Wavelengths - 630nm, 660nm (red); 810nm, 850nm (near-infrared)
- LEDs - 60 quad-chip, 5W
- Irradiance - 220 mW/cm² @ 0"; 108.8 @ 6"; 100.1 @ 9"; 86.54 @ 12"; 70.59 @ 18"
Controls
Controls
- Timer - 1 to 100 min (presets 15 / 30 / 60 / 90)
- Brightness - 1% to 100%, red and near-infrared adjust separately
- Pulse - 0 to 100 Hz
- Modes - 8 presets plus custom save
Power
Power
- Power draw - 110W
- Input - 100 to 277 VAC, 50/60 Hz
Build & Dimensions
Build & Dimensions
- Body - aluminum, dual cooling fans
- Stand - weighted 360° rotating / tilting, included
- Dimensions - 12.6 × 9.1 × 2.5 in (32 × 23 × 6.3 cm)
- Weight - 7.4 lb (3.34 kg)
Fits Where You Already Are
Morning
On the desk with a 15-minute preset while you go through email.

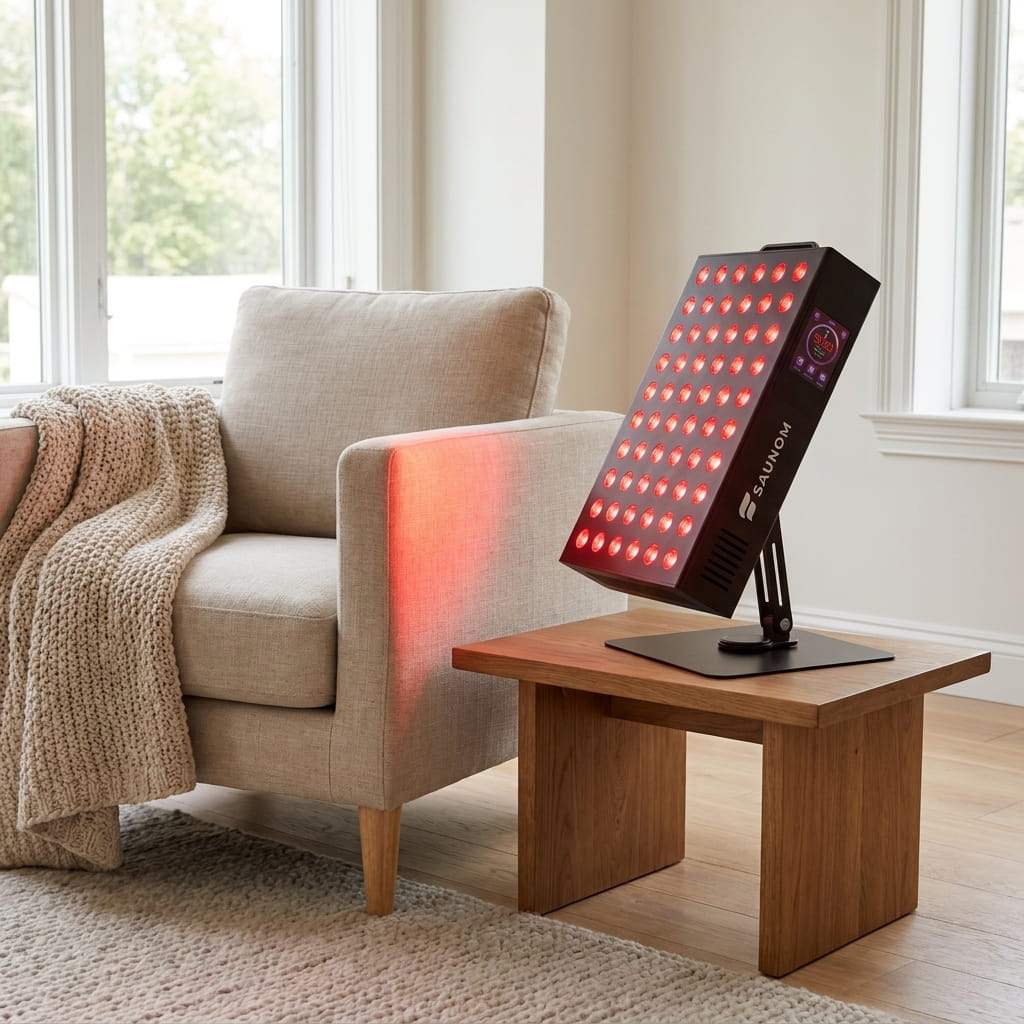

Midday
Desk stand by the chair; tilt it to where you're sitting.
Evening
On the nightstand, lower brightness, before you wind down.
Most sauna accessories are made to be cheap. We built Saunom to do the opposite.
Safe Use
- Indoor use only, on a stable, dry surface.
- Do not stare into the LEDs. Use the included eyewear as needed.
- Stop use if any discomfort occurs.
- For general wellness and lifestyle use only.
- Not intended to diagnose, treat, cure, or prevent any disease.
FAQ
Answers to most commonly asked questions.
How far should I sit from the panel?
How far should I sit from the panel?
Closer gives higher intensity, farther gives wider coverage. Output runs 108.8 mW/cm² at 6 inches down to 70.59 mW/cm² at 18 inches. The full table is in the specs above.
Can I adjust red and near-infrared separately?
Can I adjust red and near-infrared separately?
Yes. Brightness for red and near-infrared is set independently, from 1% to 100%.
What are the preset modes?
What are the preset modes?
Eight presets you select with the MODE button. You can also set time, brightness, and pulse yourself, then hold a preset to save your own.
The remote stopped responding. Can I fix it?
The remote stopped responding. Can I fix it?
Yes, it re-pairs. Turn on the panel, hold the OFF button for 5 seconds to enter pairing mode, then press any button on the remote. Check the batteries first.
What's the timer range?
What's the timer range?
1 to 100 minutes. One-touch presets at 15, 30, 60, and 90; anything else on the slider.
Is this a medical device?
Is this a medical device?
No. It's for general wellness and lifestyle use. It is not a medical device, is not intended to diagnose, treat, cure, or prevent any disease, and has not been evaluated by the FDA.
Does the remote need batteries?
Does the remote need batteries?
Yes, 2 AAA batteries, which aren't included in the box.
How do I set it up?
How do I set it up?
Attach the panel to the stand with the four included screws (hand-tightened, no tools). Tilting the stand to a set angle uses an Allen key. Connect the power cord, power on from the back, and set your session on the touchscreen or remote.
What power does it use?
What power does it use?
110W draw, and it runs on 100 to 277V, so it works on US and international mains with the right cord.
